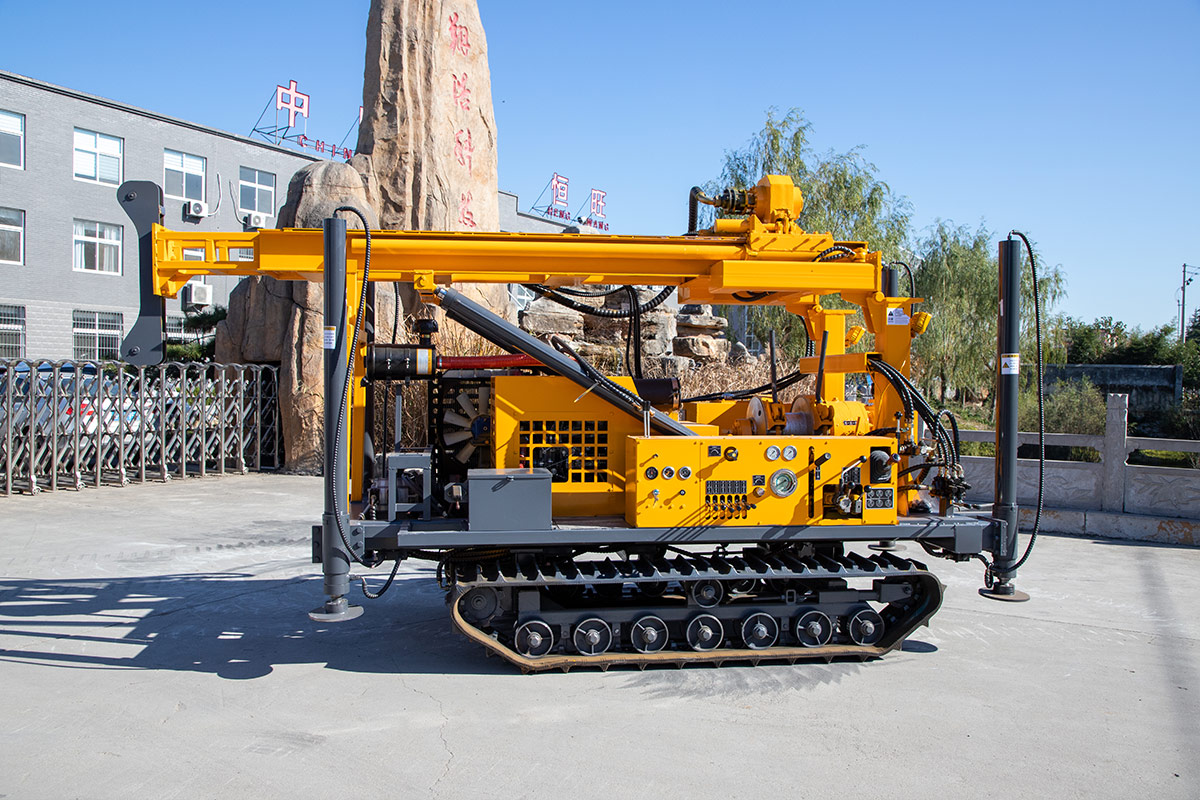

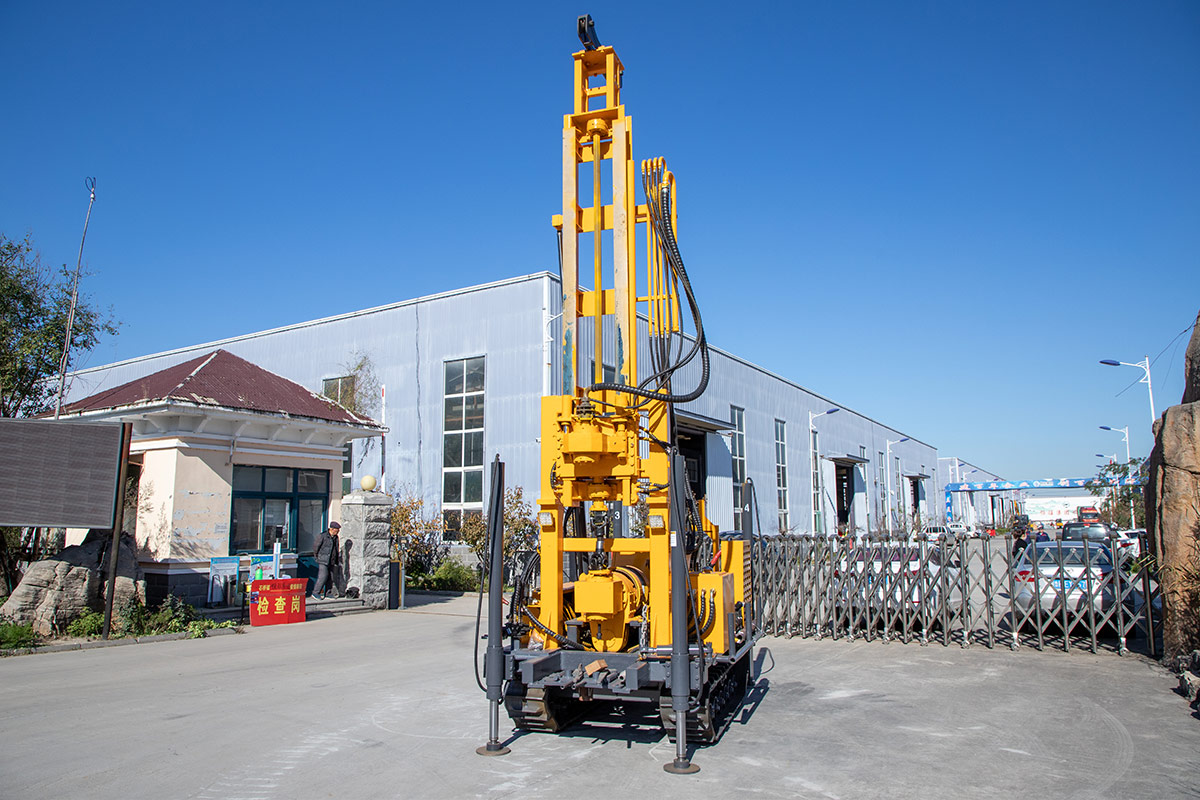

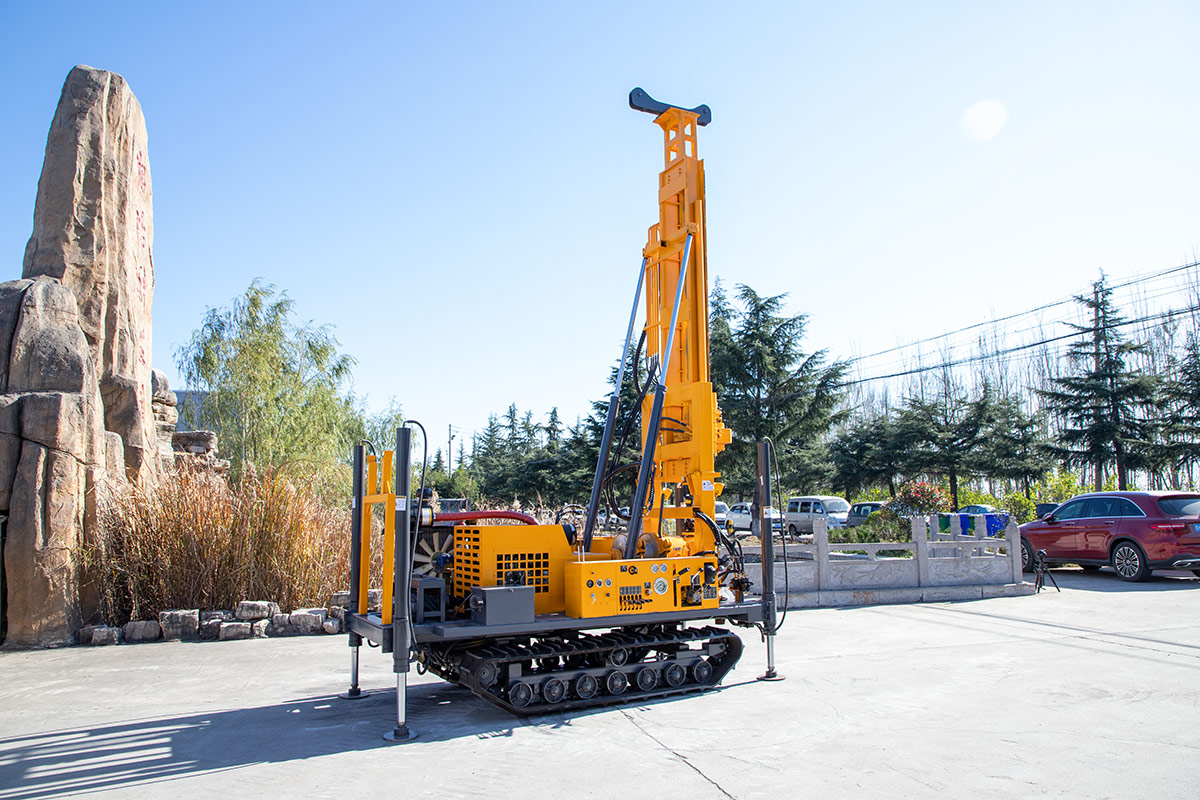

HWDL-280 Mud/air Drilling Rig
Drilling diameter: 75-350mm
Engine Power: 42Kw
Main features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Tracked chassis improves off-road performance.
| Model | HWDL280 |
| Drilling depth | 200m (152mm~203mm) |
| Rope core-drilling 75mm bore diameter | 300m |
| Drilling diameter | Ø75～Ø350mm |
| Drilling angle | 90° |
| Lifting force | 100KN |
| Propulsive force | 50KN |
| Rotating speed | Forward: 33-1120r/min |
| Reverse: 37/180r/min | |
| Maximum torque | 9800N.m |
| Transport dimension | 4600*1700*2400mm |
| Working state dimension | 3200*2300*5600mm |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
Submit the form to get the latest parameters and quotes.
