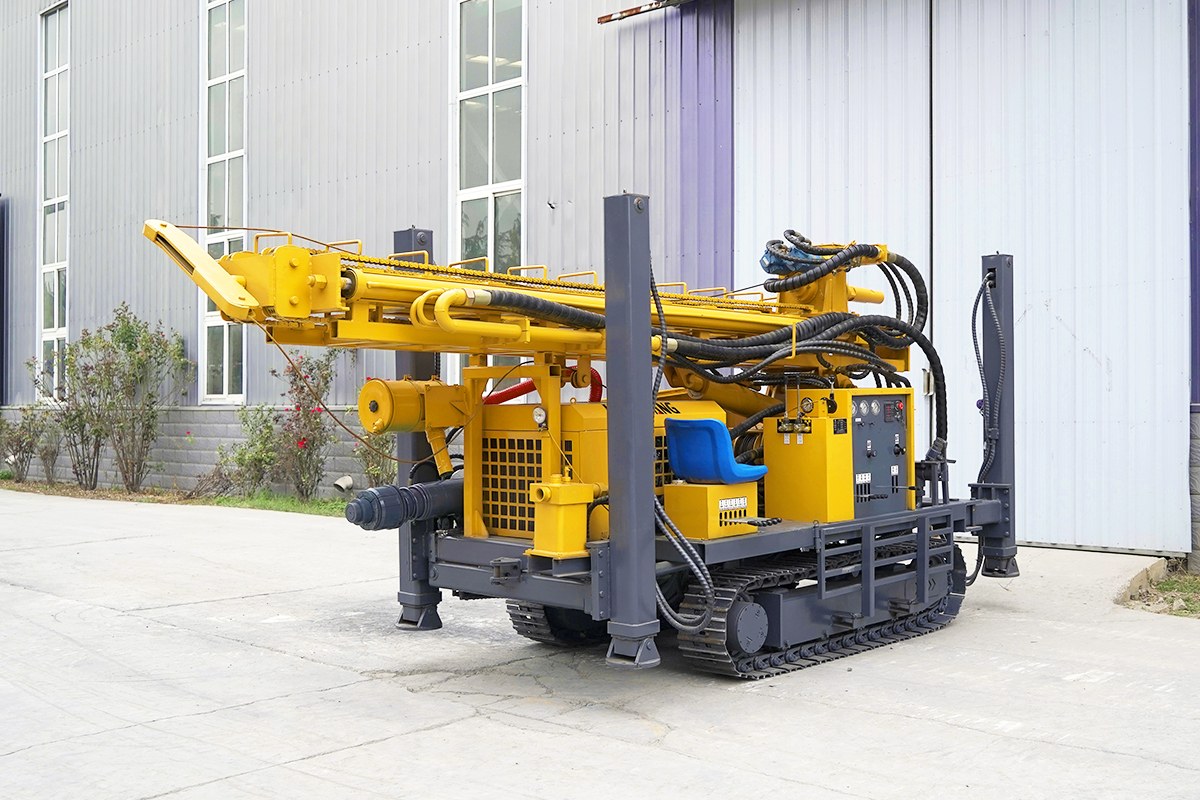

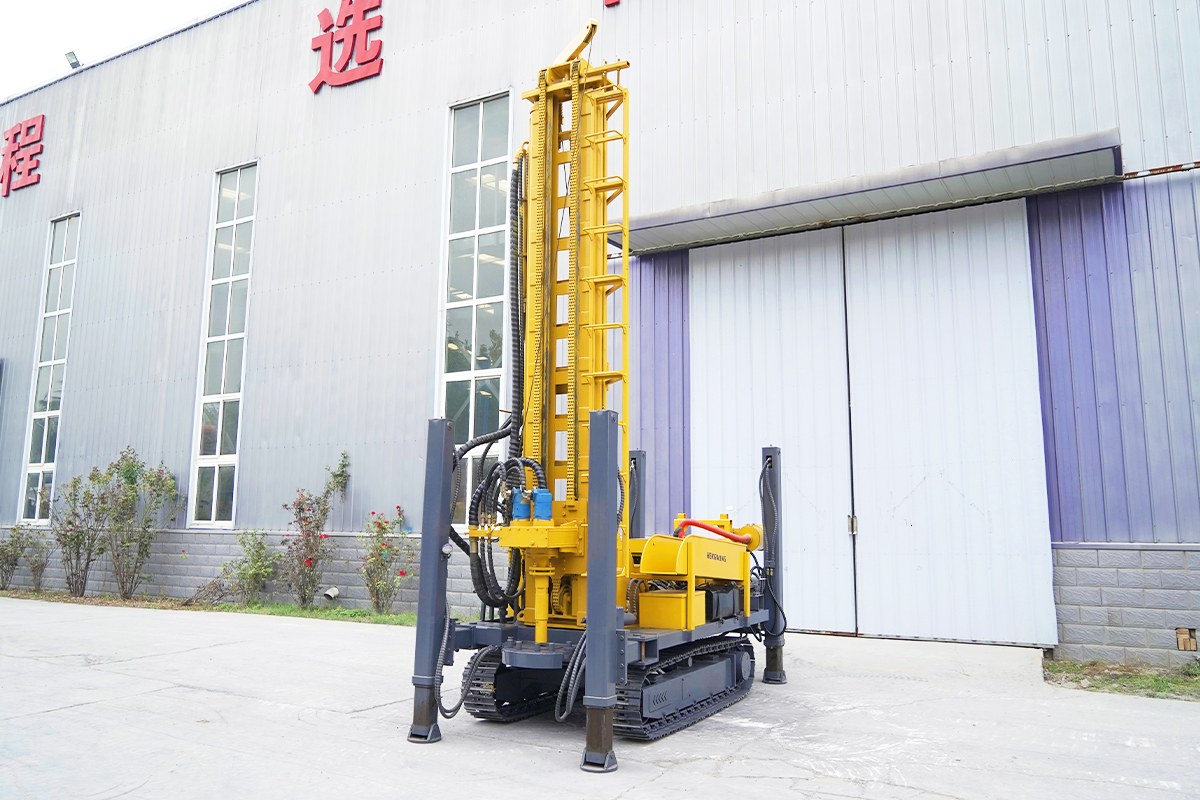

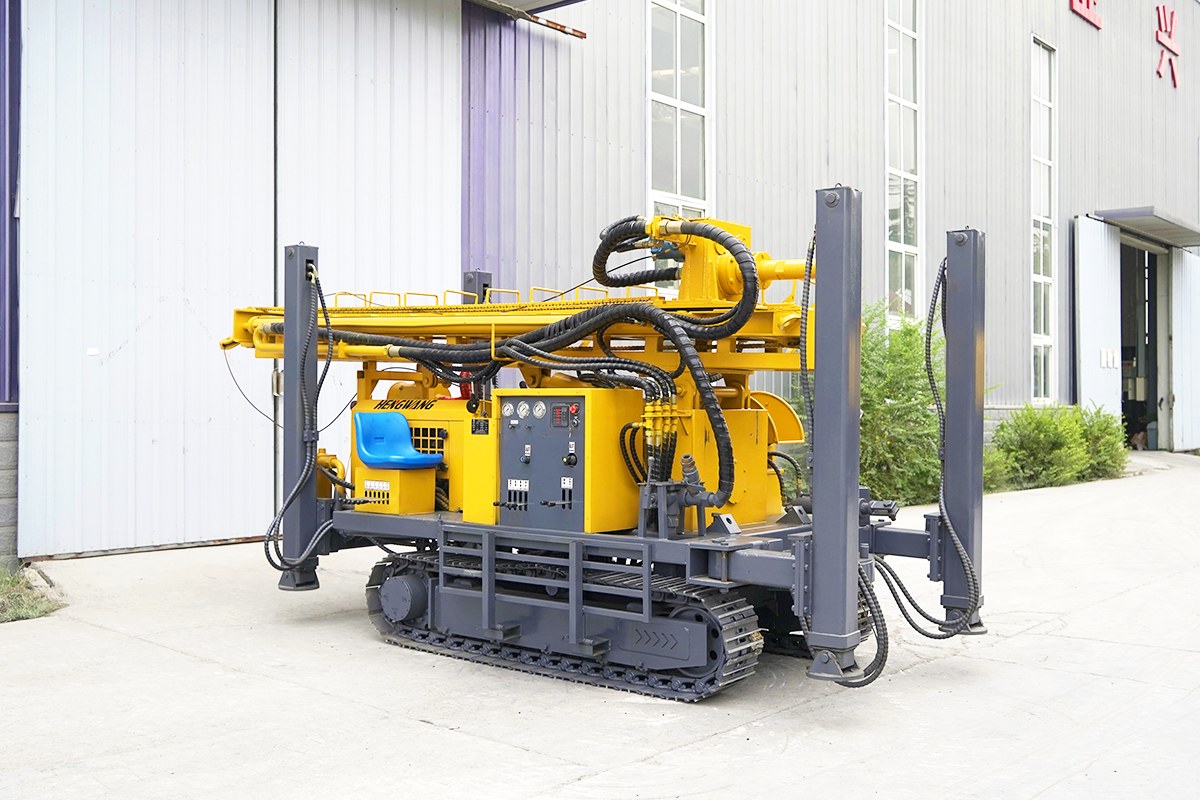

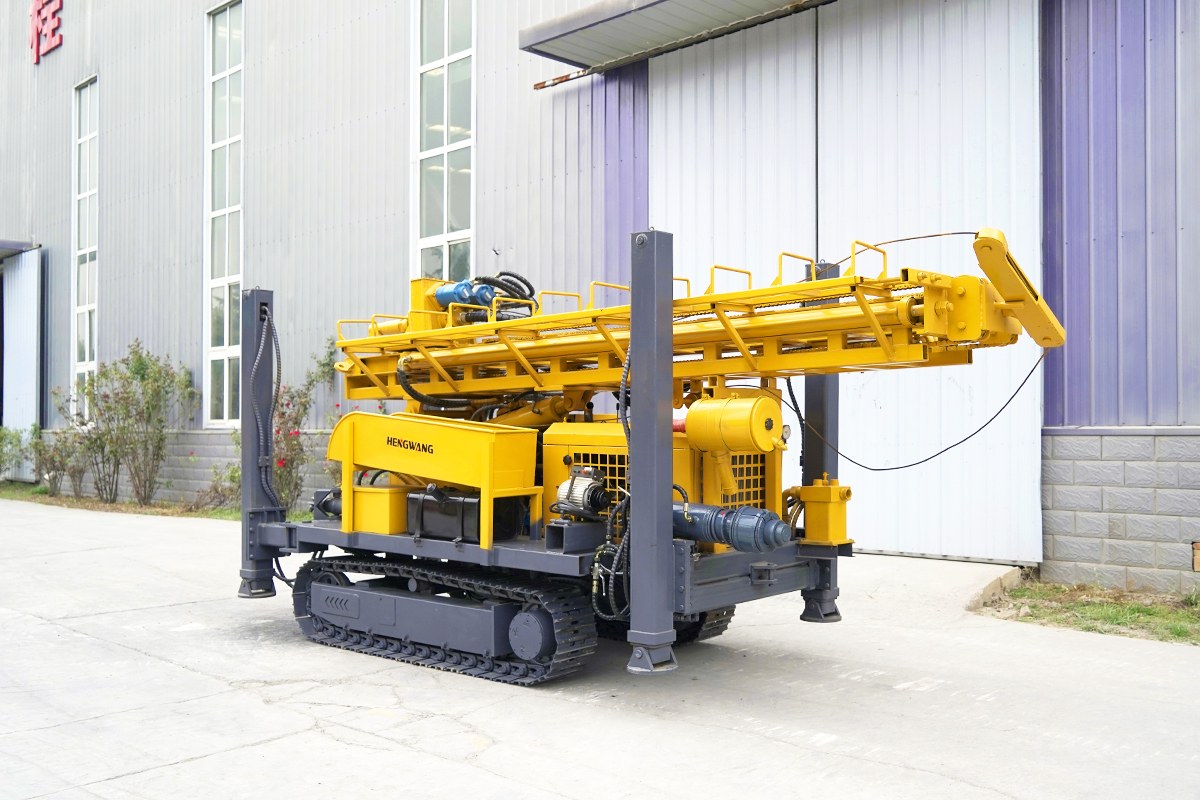

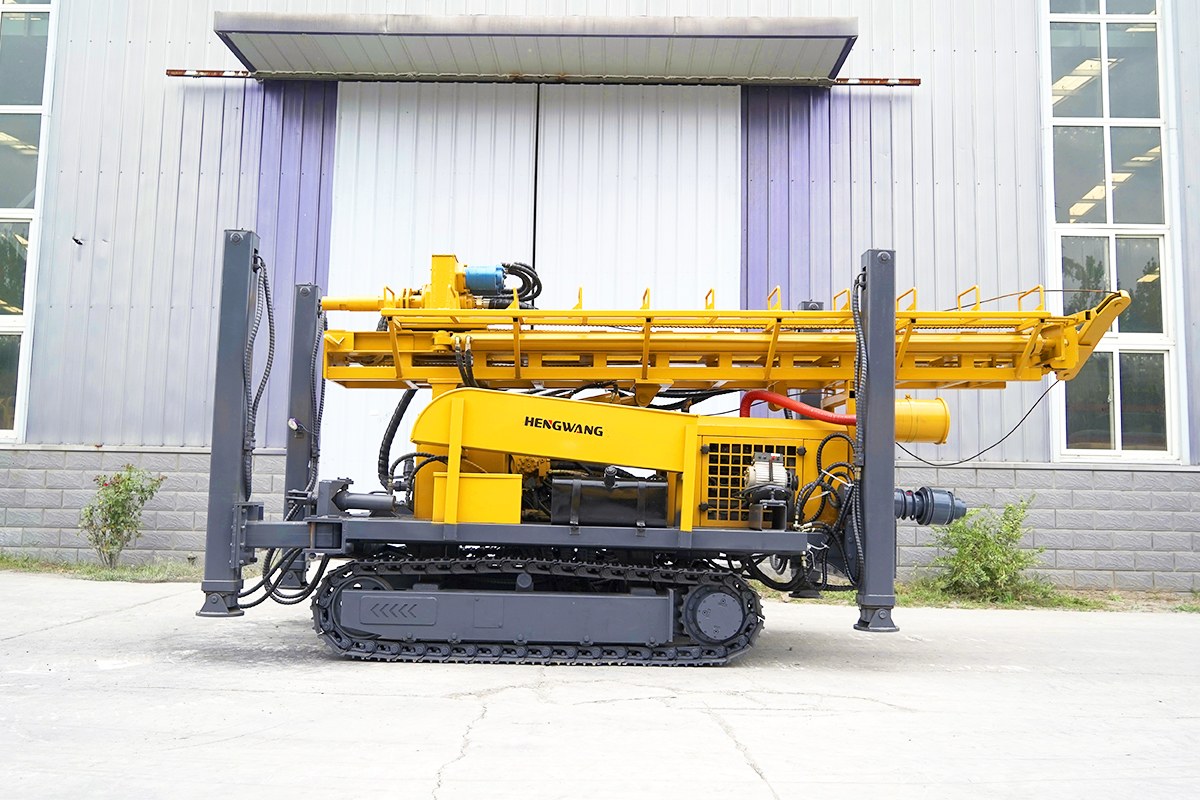

HQZ-260L Pneumatic Drill Rig
Drilling diameter: 130-305mm
Engine Power: 76/77.3Kw
Hengwang Pneumatic Drilling Rig Series
HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
Main feature:
1. Crawler walking is more suitable for muddy field movement.
2. Pneumatic drilling rig, with air compressor, the efficiency is equivalent to 10~15 times of ordinary drilling rig.
3. The drilling on the rock is mainly based on the down-the-hole hammer drilling process. The down-the-hole hammer rock drilling operation efficiency is high, and the drilling cost per meter is lower.
| model | HQZ-260L | unit |
| tower | 3 | m |
| Chassis | Rubber track / Steel track | / |
| Drilling diameter | 130-305 | mm |
| Drilling depth | 260 | m |
| One-time advancement length | 3.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yunnei / Yuchai | / |
| Engine power | 76/73 | kw |
| working pressure | 1.7-3.0 | mpa |
| Air consumption | 17-31 | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.5/2.0/3.0 | m |
| Lifting power | 17 | T |
| Swing speed | 45-65 | rpm |
| Rotating torque | 4500-4700 / 4500-5000 | N.m |
| Dimensions | 3900*1850*2350 | mm |
| weight | 4.8 / 6 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
Submit the form to get the latest parameters and quotes.
