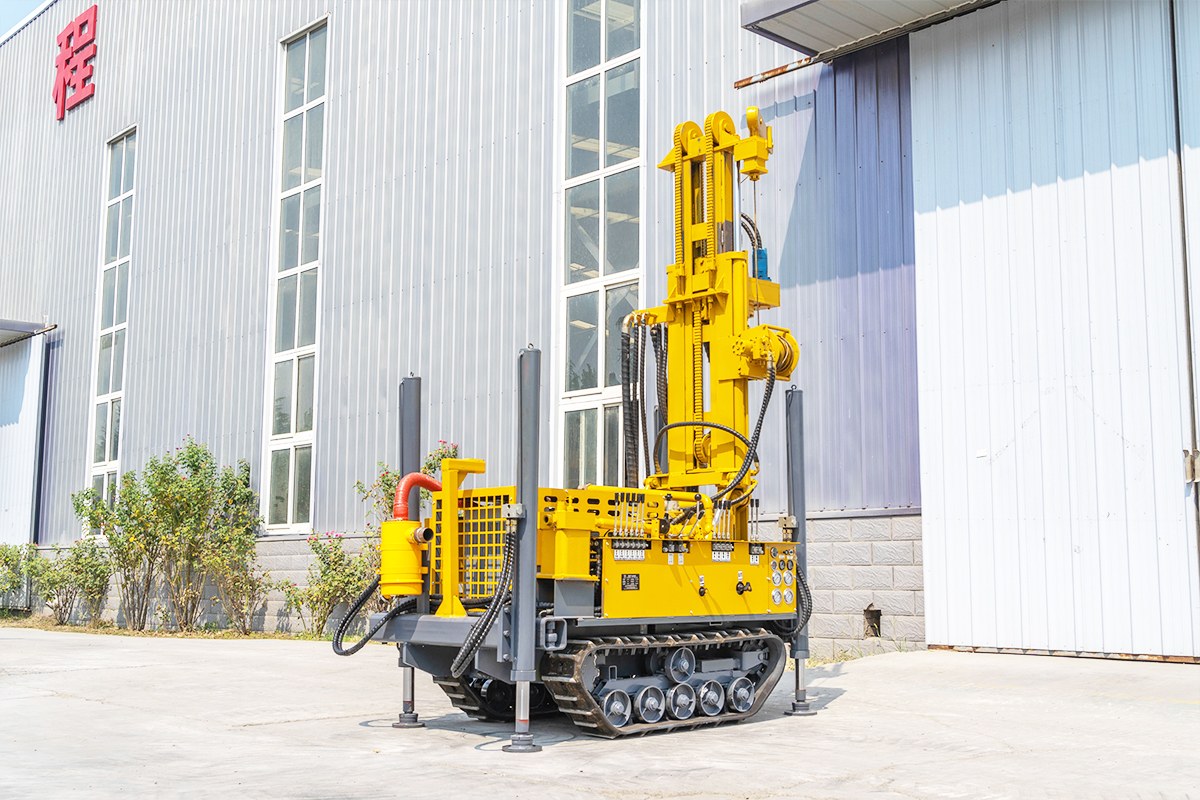

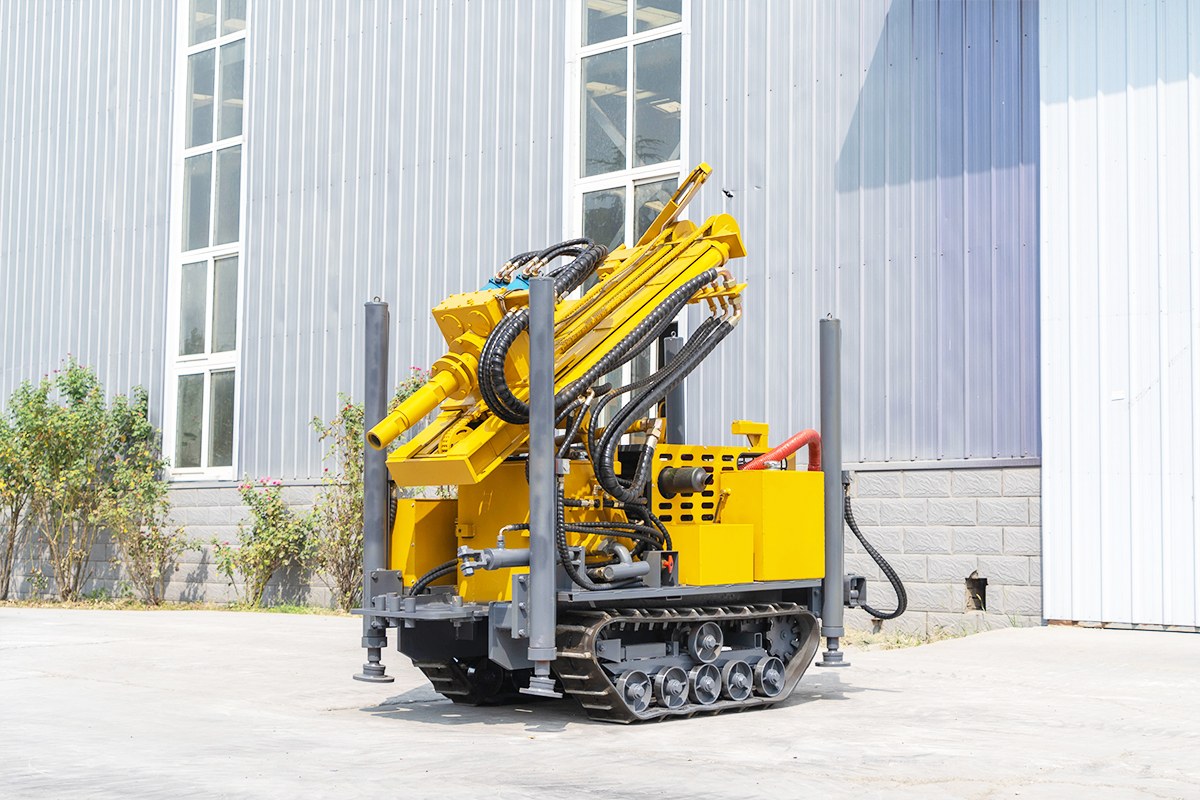

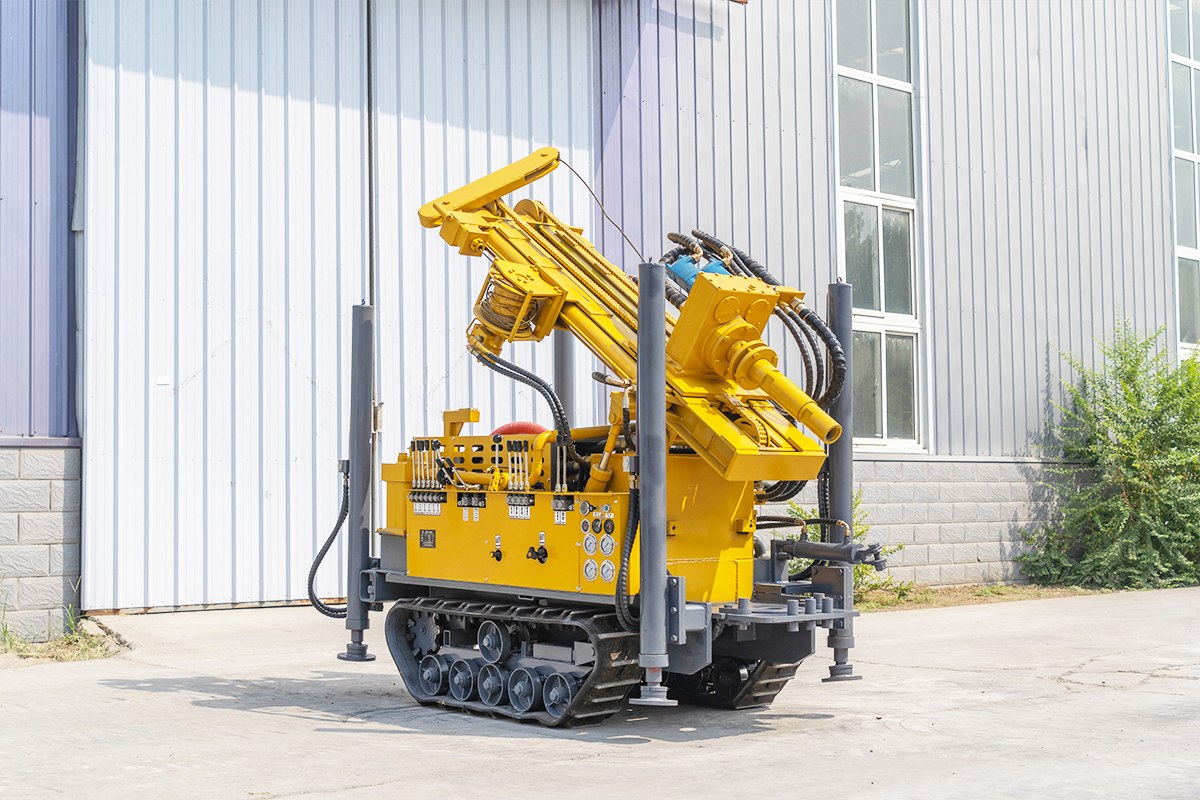

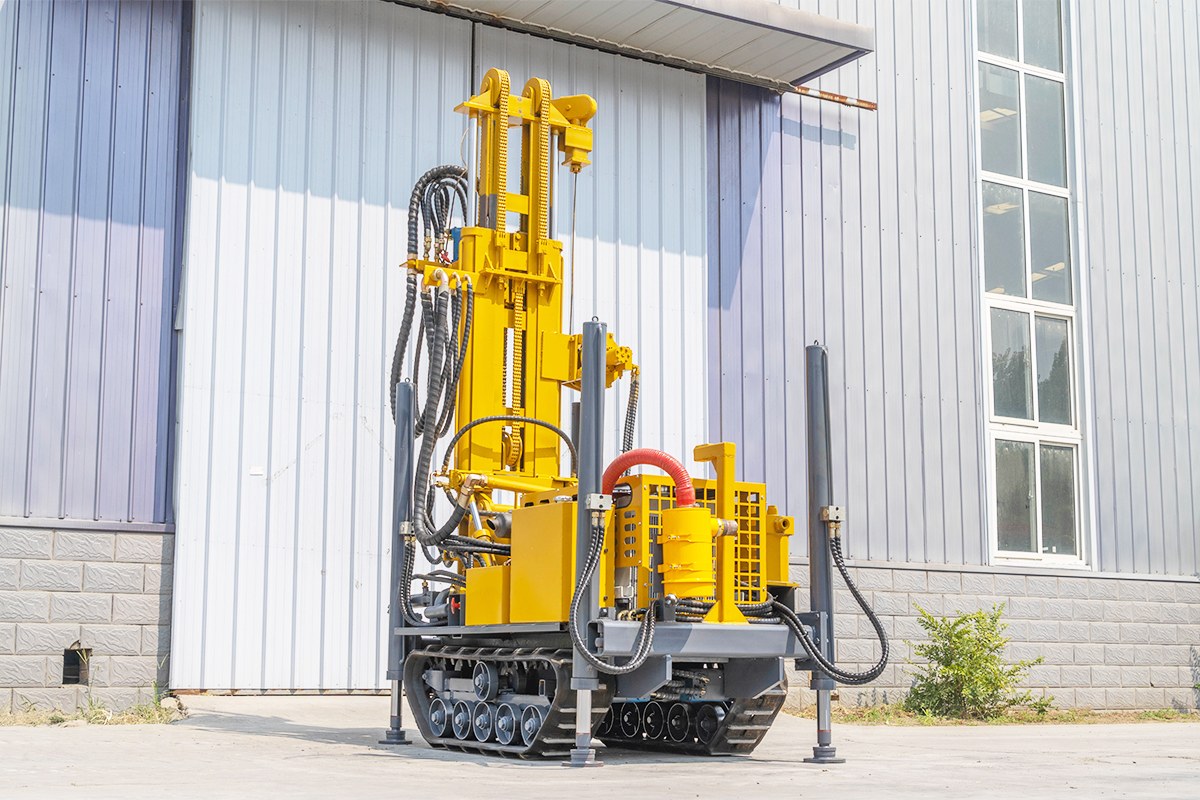

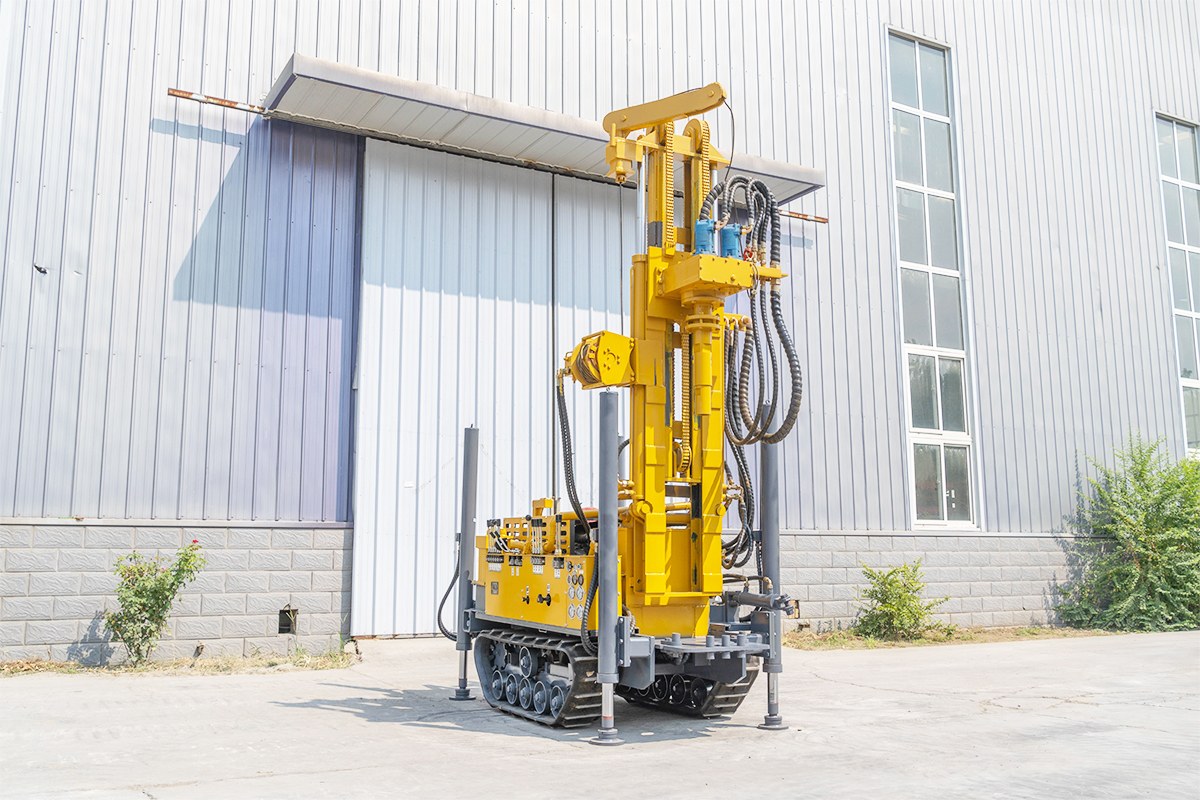

HQZ-160L Pneumatic Drill Rig
Drilling diameter: 138-203mm
Main motor power: 73Kw
Hengwang Pneumatic Drilling Rig Series
HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
| model | HQZ-160L | |
| tower | 2 | m |
| Chassis | Rubber track | / |
| Drilling diameter | 138-203 | mm |
| Drilling depth | 160 | m |
| One-time advancement length | 2 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 73 | kw |
| working pressure | / | mpa |
| Air consumption | / | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.0/1.5/2.0 | m |
| Lifting power | 12 | T |
| Swing speed | 50-110 | rpm |
| Rotating torque | 7800 | N.m |
| Dimensions | 2300*1200*1900 | mm |
| weight | 2.6 | T |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
