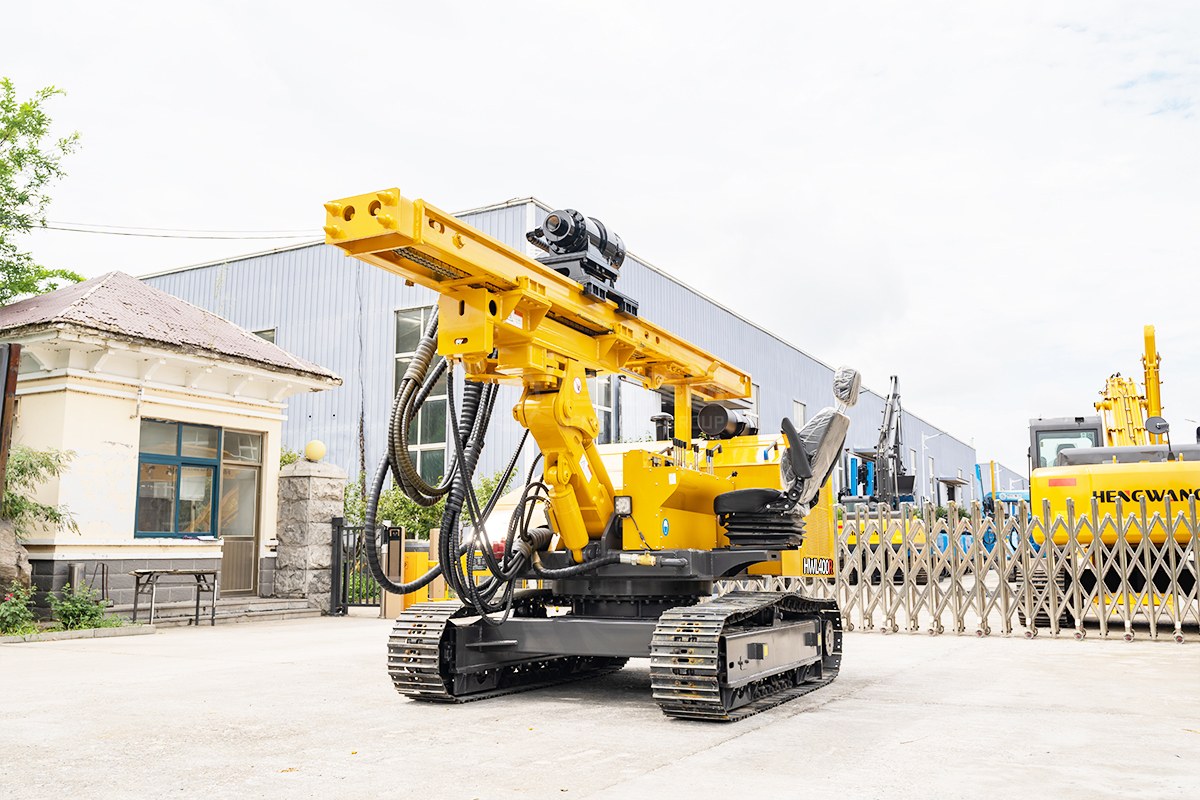

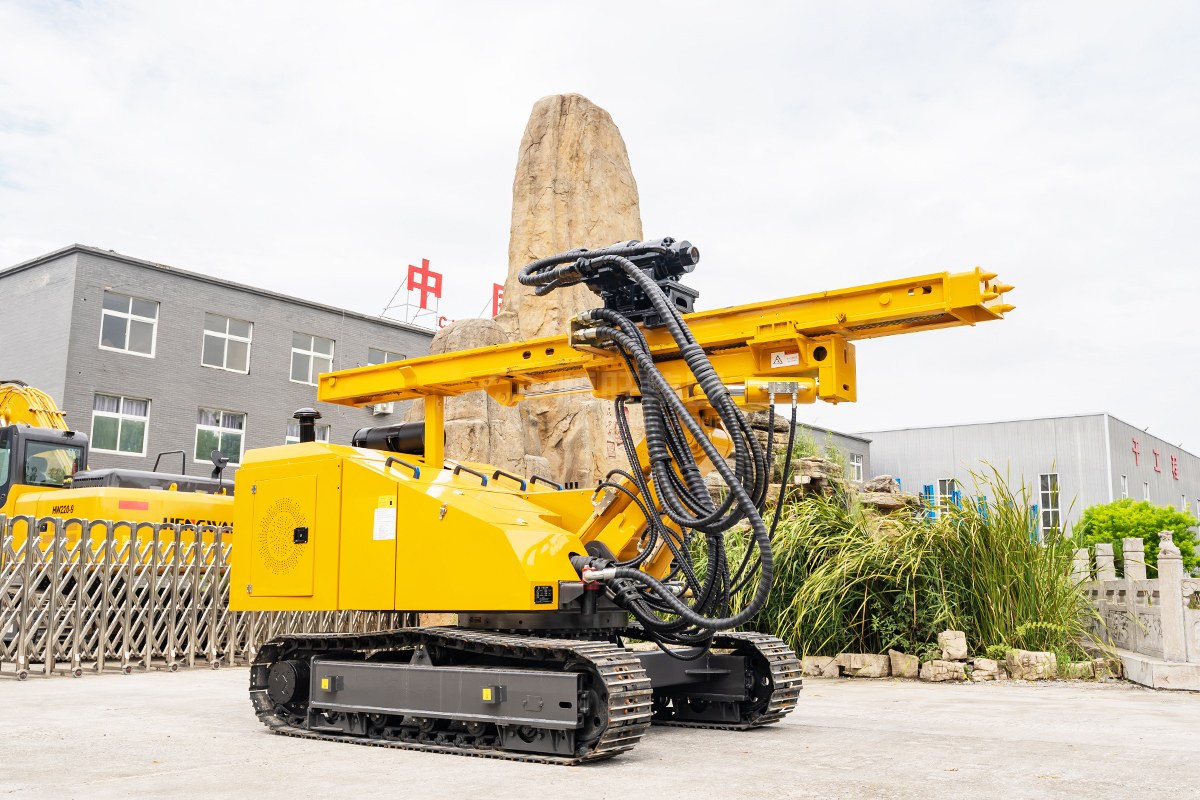

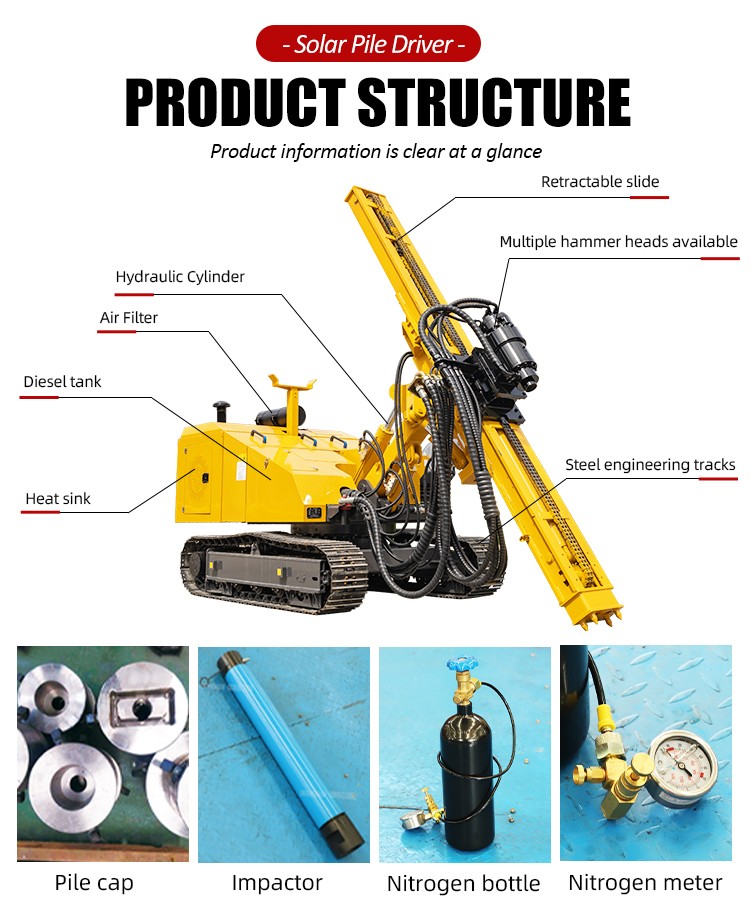

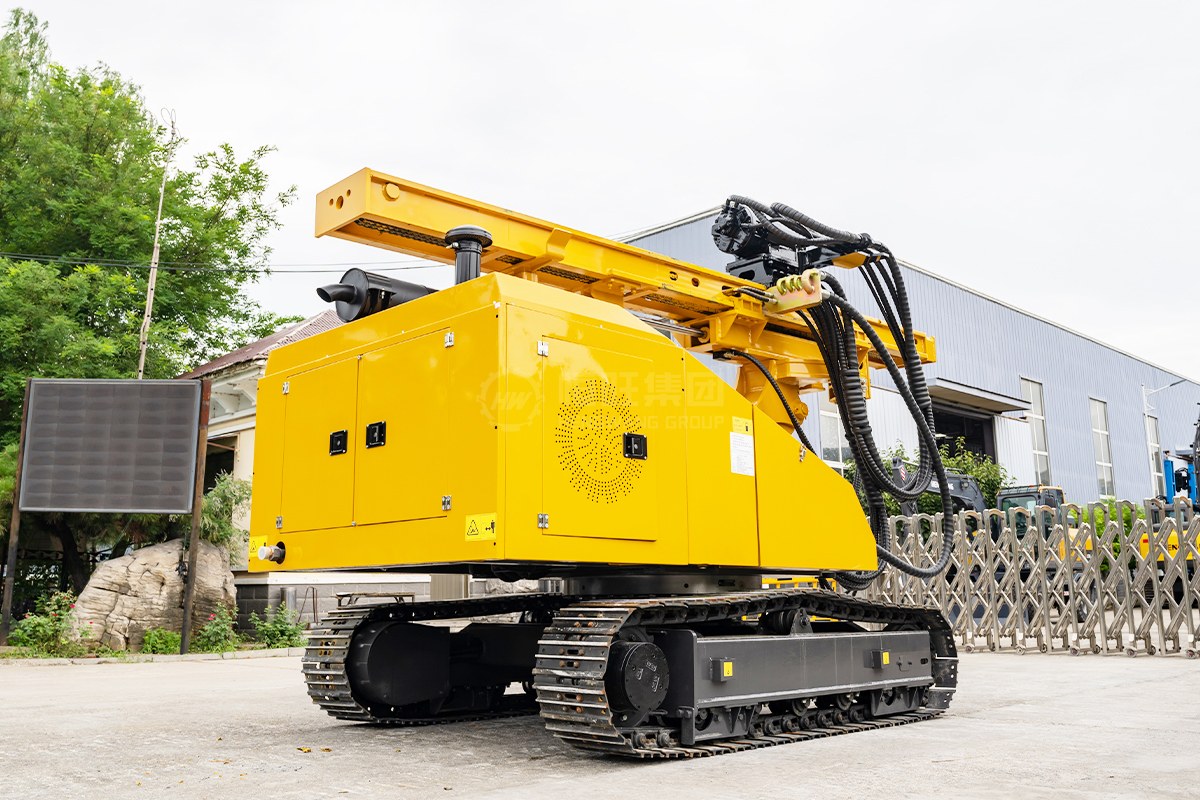

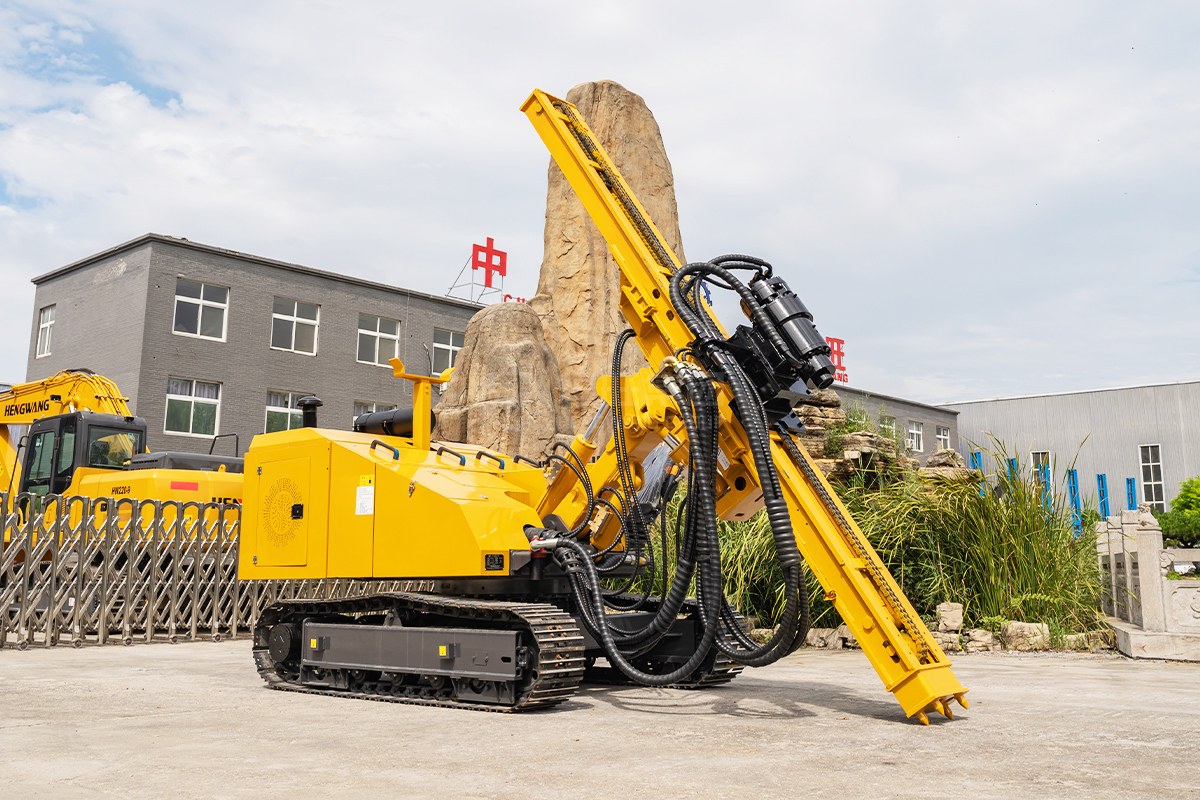

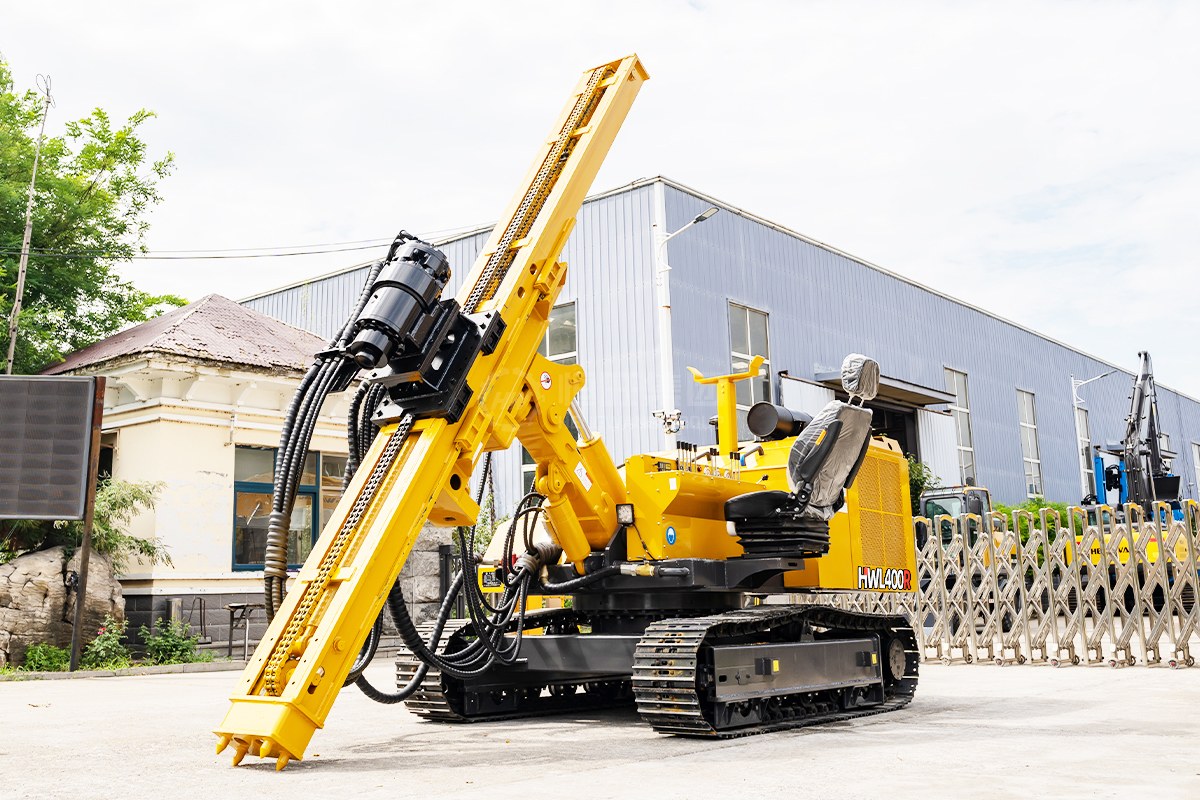

HWL400R Solar Pile Driver
Rotation angle : 360°
Machine Weight: 7.6T
| Product number | HWL400R | |
| Hydraulic hammer model | 75/85/100 optional | mm |
| Hydraulic hammer flow | 50-110 | L/min |
| Impact frequency | 350-800 | bmp |
| Drill rod diameter | 75/85/100 | mm |
| pile height | 4 | m |
| Pile height sliding guide frame tilt angle | （Left）5（Right）5 | ° |
| Rack rotation angle | 360 | ° |
| Hydraulic system pressure | 22 | mpa |
| Gear pump displacement | 40+40+25 | ml/r |
| Driving speed | 3 | km/h |
| Vehicle weight | 7600 | kg |
| Engine power | 85 | kw |
| Engine rated speed | 2600 | r/min |
| Track shoe width | 350 | mm |
| dimensions | L*W*H 2375*1980*5670mm（working status） L*W*H 5670*1980*2375mm（Shipping status（The transportation height is the height with the hydraulic hammer head/hydraulic power head removed) | |
| Optional | |||
| Hydraulic drilling power head | model | HWQK350 | |
| Torque | 8000-12000（Optional） | N•m | |
| single maximum depth | 4 | m | |
| Maximum DTH diameter | 130-400 | mm | |
| Maximum spiral drilling diameter | 500 | mm | |
The HWL400R is a piling equipment originally designed for early-stage piling in photovoltaic power stations. However, through research and development efforts and continuous upgrading, it has been enhanced to be suitable for various piling projects in farms, pastures, orchards, and similar applications.
Main features:
1. A reasonable power engine ensures fuel efficiency while maintaining stability and high performance.
2. High-quality hydraulic components and a strict assembly process ensure the high efficiency of the hydraulic system.
3. International high-standard raw materials are used to ensure the stability of the vehicle body.
4. The design features an industrial aesthetic.
Quote now for the best price.
Company Profile

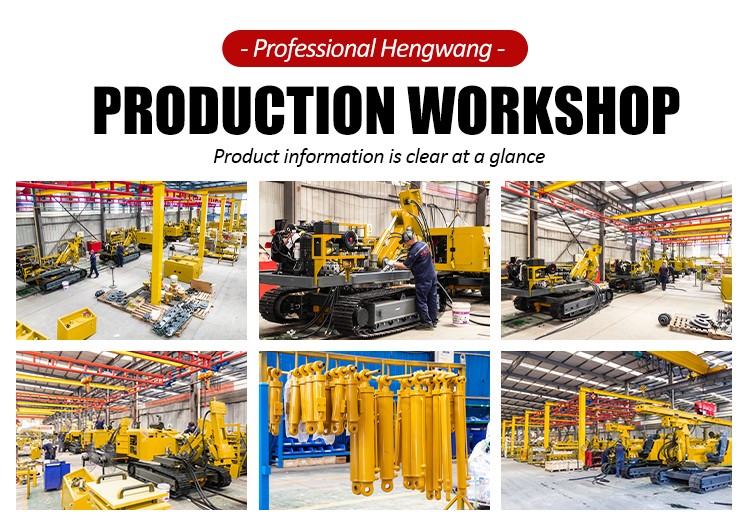

Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
