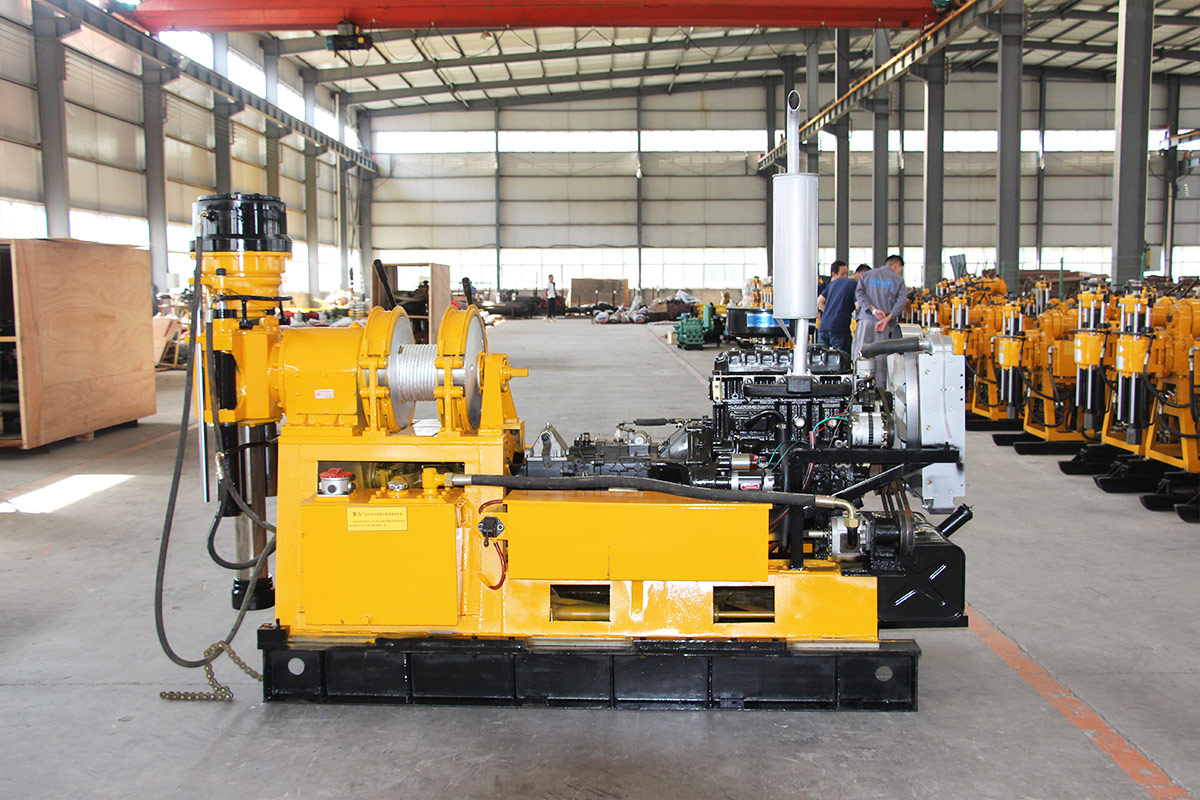

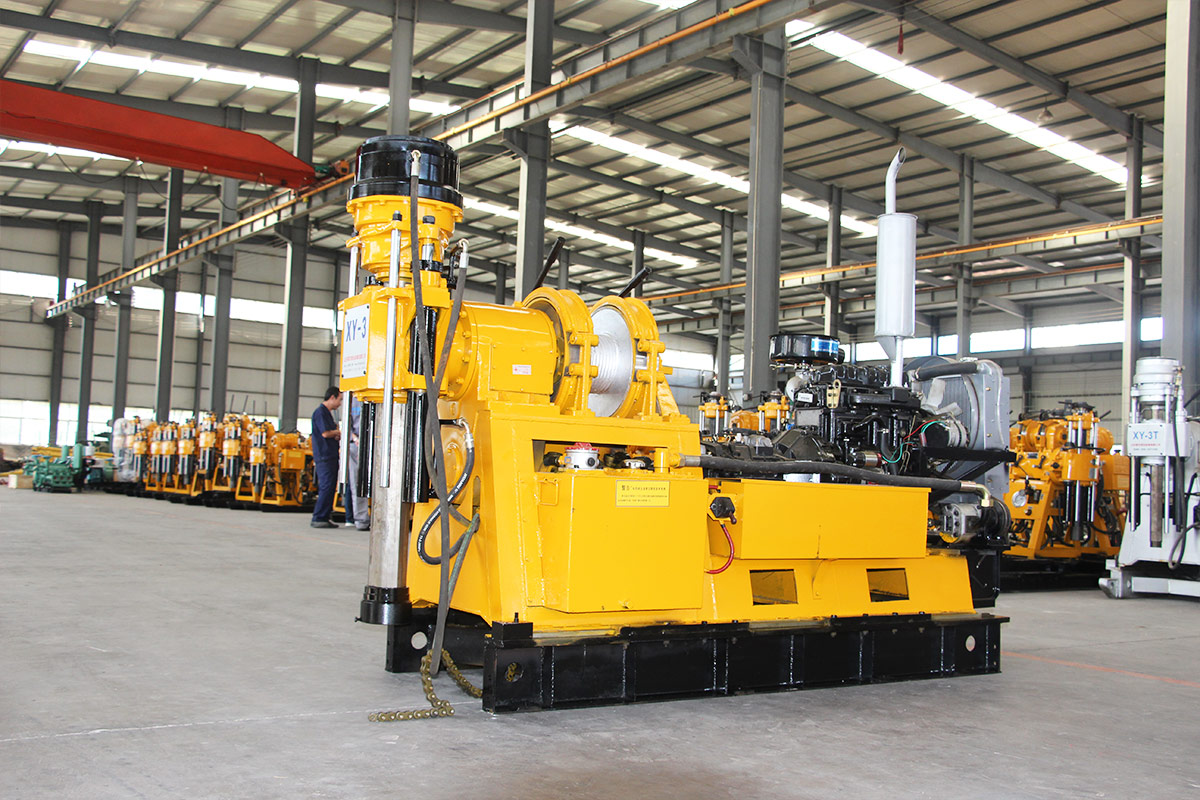

XY-3 Hydraulic Drilling Rig
Drilling diameter: 75-325mm
Rated Power: 42Kw
Hengwang water well drilling rigs are designed to be durable and highly reliable to provide safe and efficient work in some of the most challenging environments in the world.

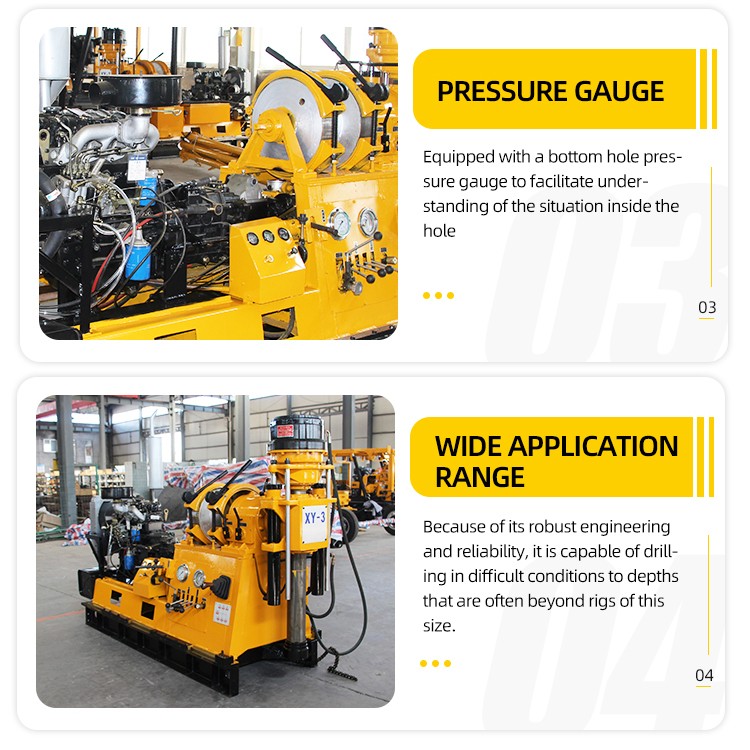

The rig is versatile and can be used in a variety of applications: water wells, mineral exploration, geothermal applications, soil surveys, rock coring, and more. The rig can be mounted on tracks, skids or trucks.

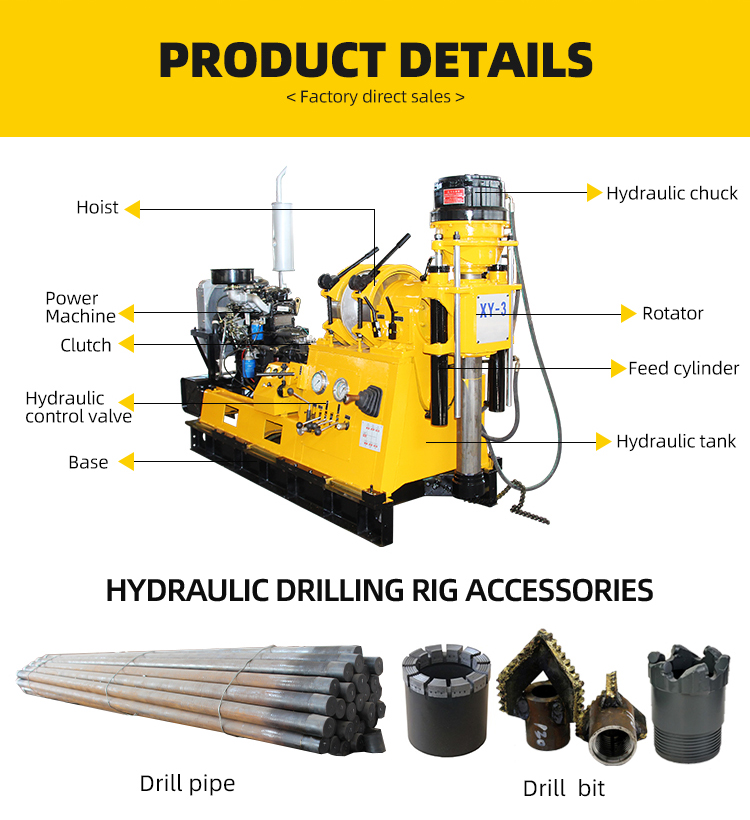

Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;

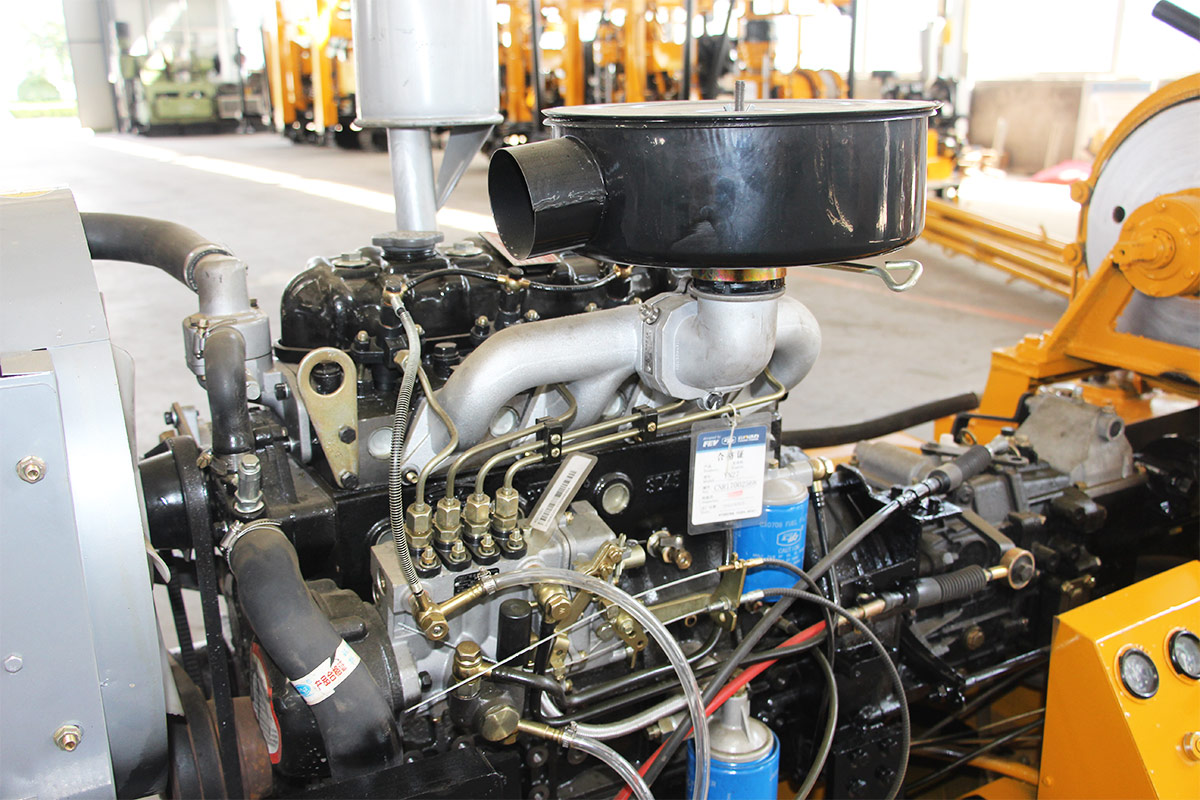

2. Hengwang drilling rig is specially designed for the perfect match of engine and hydraulic system;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
| model | XY-3 | |
| Drilling depth | 600 | m |
| Opening diameter | 325 | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 42 | kw |
| weight | 2350 | kg |
| Machine size | 2600*900*1750 | mm |
| Vertical shaft speed | 32-1057 | r/min |
| Vertical axis travel | 600 | mm |

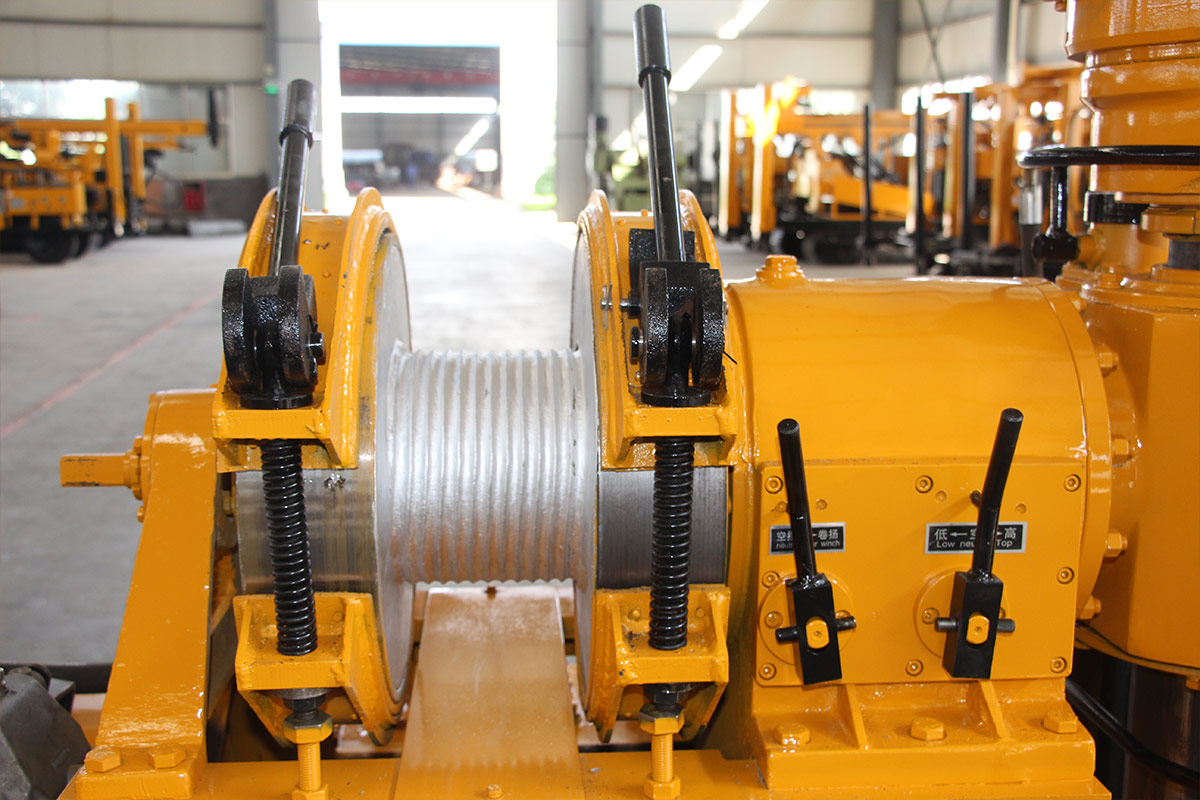

| Single rope lifting force | 3000 | kg |
| Single rope lifting speed | 0.3-1.9 | m/s |
| Wire rope diameter | φ12.5 | mm |
| Wire rope capacity | 65 | m |
| Rated load | 18 | Ton |
| effective height | 11 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
