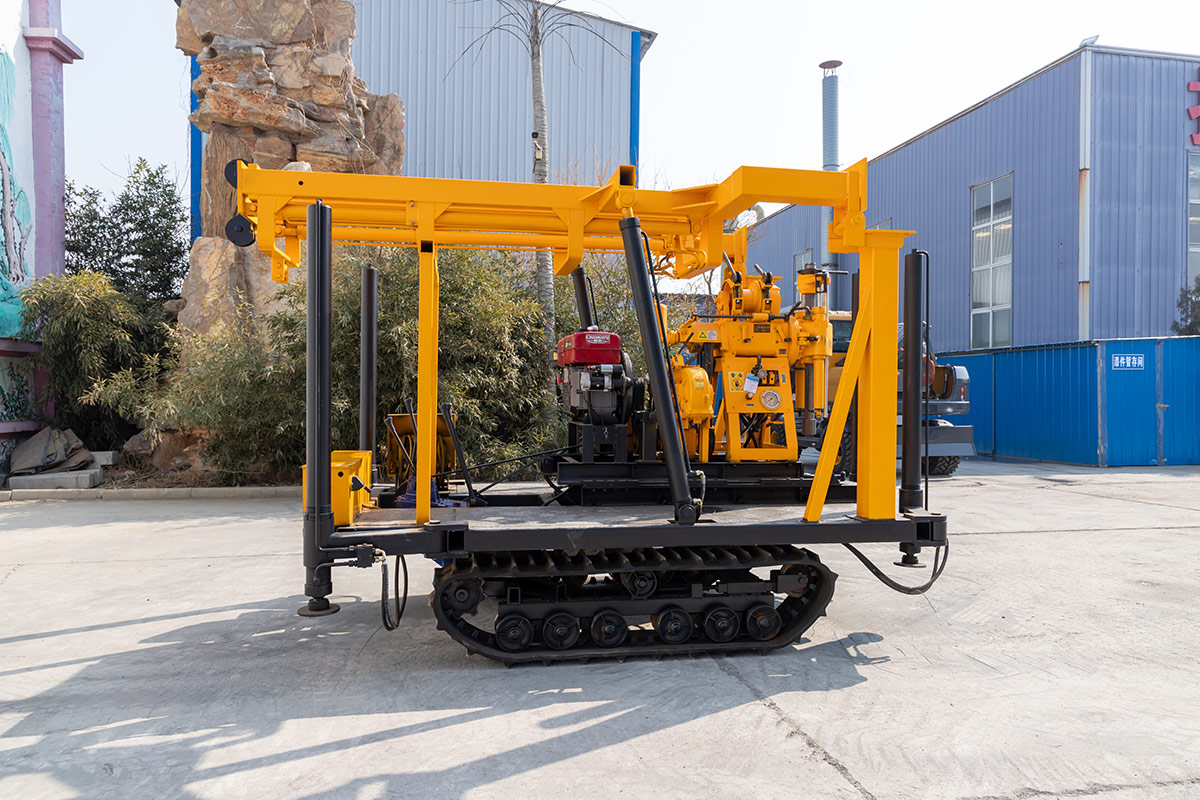

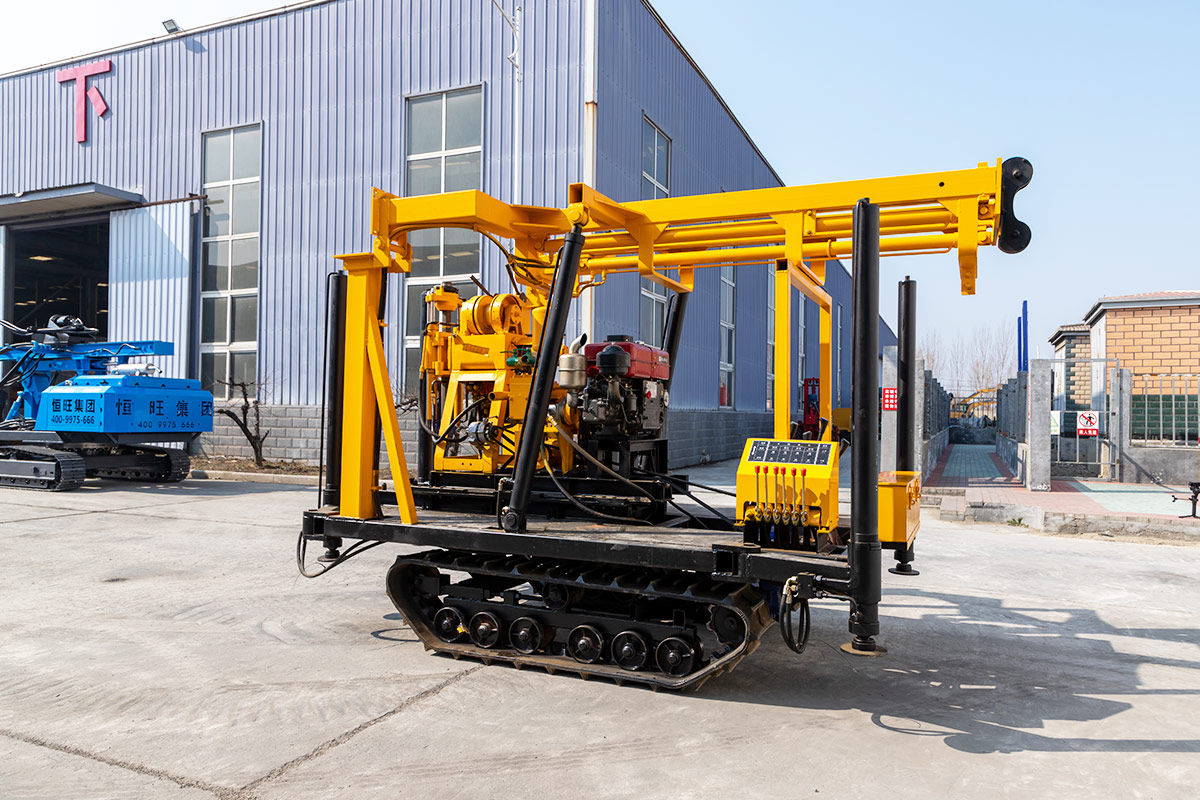

HW-160L Hydraulic Drilling Rig
Drilling depth: 160m
Rated Power: 13.2Kw
Product Parameters:
| model | HW160L | |
| Drilling depth | 160 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 13.2 | kw |
| weight | 3200 | kg |
| Machine size | 3800*1950*2700 | mm |
| Vertical shaft speed | 142/285/570 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2000 | kg |
| Single rope lifting speed | 0.41-1.64 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Main feature:
1. The loose layer can be used for cutting or cone drilling operations, and mud slag discharge, suitable for drilling needs under complex geological conditions;
2. Hengwang rig drilling machine is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
Hengwang Group hydraulic water well drilling rig is a professional water well drilling equipment, mainly used for industrial drilling, low temperature drilling and agricultural drilling. Wireline coring rigs can be used for geological exploration as well as SPT soil testing.
Submit the form for more parameters and quotes.
emark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
